Wednesday, November 24, 2010

The ANYTONE 5189 4M FM Mobile

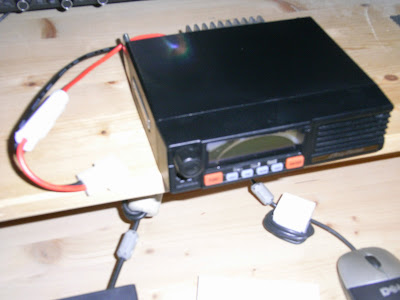

Martin Lynch and Son have taken delivery of their first batch of the new ANYTONE 5189 Transceivers. These cover 4M and output is about 40 Watts on high power. I think the specification is 60 watts so some internal tinkering may be considered in the future? That said the 20 watts difference is not great and probably won´t make a difference on the air.The radio come nicely packaged with a double fused power lead, fist microphone, mobile mount and of course a fairly easy to read manual. The manufacturer is Qixiang Electronics (Never heard of them!)
I have only just bought this today (24th November), one of the initial batch of ten. Initial on the air testing has been positive.
It has a very large integrated heat sink. I imagine that this can actually dissipate the power on 60 watts.

The rig is a little sensitive to SWR, changing the coax length by 1/4 wavelength resulted in just shy of 40 watts out.

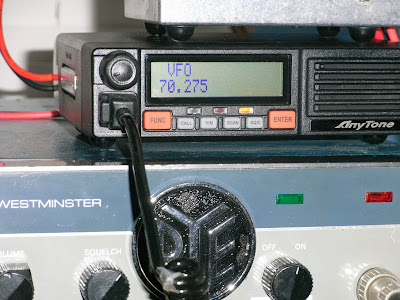

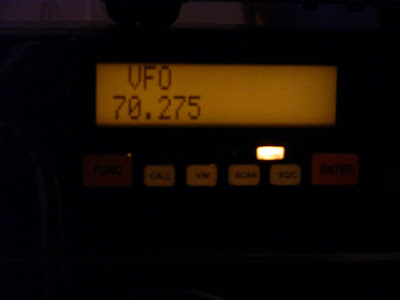

I took a few photos of the display, with and without the flash. As you can see its not huge, but acceptable for mobile use. Still no S meter...sigh!

Tuning of the VFO is on the front panel dial (Finally no more up down buttons!). The dial doubles for volume if you press it once. The squelch is on a menu (Can´t have em all....) but can be defeated by a button press for those DX contacts?

On the air reports were good although the default deviation of 25Khz was too wide and had to be turned down to 12.5K

Sensitivity was slightly better than my ASCOM SE550 and the integral speaker was very clear and produced good audio. the microphone is a good size and comes with up/down buttons for mobile use. It connects to the rig using the RJ45 type connector, similar to most modern rigs.

There is a speaker jack at the rear.

This is one of the first batch and the next batch should be in before Christmas. At £149.95 they aren´t giving them away but if you compare it to the Yaesu FT-2900 single band 2M transceiver its not too expensive and hand helds aside the only new 4M transceiver available on the market (So put it on your Christmas list now?)
